In the world of modern electronics, the MOSFET (Metal–Oxide–Semiconductor Field-Effect Transistor) is one of the most versatile and critical components. Found in everything from laptops and smartphones to electric vehicles, industrial automation systems, and renewable energy inverters, MOSFETs are essential for switching, amplification, and precise energy-efficient circuit control.
A question that frequently arises among students, engineers, and electronics enthusiasts is: “Is MOSFET AC or DC?” This stems from the fact that MOSFETs appear in both direct current (DC) and alternating current (AC) applications, often within the same system. Understanding the distinction requires not only knowing the physical behavior of the MOSFET but also the way it interacts with circuit voltage, current, and frequency.
This comprehensive guide will explore how MOSFETs operate in DC and AC systems, explain the differences in behavior, and provide detailed technical insights into choosing the right MOSFET for a given application. By the end of this article, readers will understand not only whether a MOSFET is AC or DC, but also its versatility in modern electronics design, and how it contributes to efficiency and signal integrity.
Before answering whether a MOSFET is AC or DC, it’s important to understand its internal structure, operational principles, and electrical characteristics.

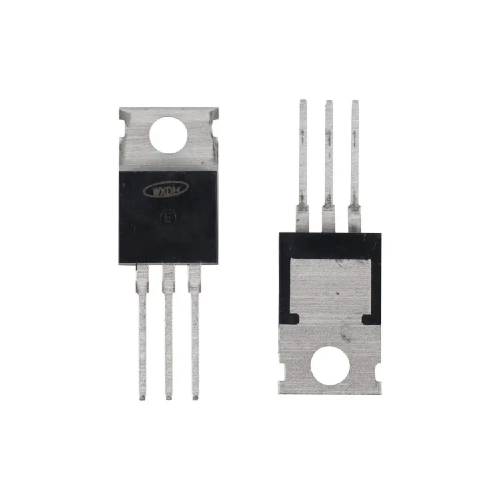

A MOSFET is a voltage-controlled semiconductor device that regulates the flow of current between two terminals: the source (S) and drain (D). The gate (G) terminal, separated from the channel by a thin insulating oxide layer, controls this flow. Unlike BJTs (Bipolar Junction Transistors), which are current-controlled, MOSFETs are voltage-driven, allowing for faster operation and reduced power consumption.
MOSFETs can be implemented in both analog and digital circuits, and they are fundamental in applications requiring high switching speed, low gate drive, and minimal conduction losses.
A standard MOSFET consists of four terminals:
Source (S): Entry point for charge carriers; typically connected to ground or reference voltage.
Drain (D): Exit point for carriers; connects to load or higher potential.
Gate (G): Controls the channel conductivity via an electric field; requires minimal current for operation due to gate insulation.
Body/Substrate (B): Often internally connected to the source; influences parasitic capacitance and threshold voltage.
The silicon dioxide (SiO₂) insulating layer between the gate and channel allows precise voltage control over current flow. This design enables high input impedance, low power consumption, and efficient switching, even at high frequencies.
MOSFETs operate in three main regions, which dictate their functionality:
Cutoff Mode: The gate voltage is below the threshold voltage (Vth). The MOSFET is OFF, and negligible current flows between drain and source.
Linear/Triode Mode: The gate voltage exceeds the threshold but the MOSFET operates with a small drain-source voltage. It acts like a variable resistor, controlling current proportionally to gate voltage.
Saturation/Active Mode: The gate voltage is sufficient to fully open the channel, allowing maximum current flow, ideal for switching or amplification.
Understanding these modes is essential to predict MOSFET behavior in AC versus DC circuits. The mode selection depends on whether the device is used for high-speed switching or signal modulation.
MOSFETs are widely used in DC circuits as electronic switches. In these applications, the primary goal is to control the flow of a constant voltage source to a load with high efficiency and minimal energy loss.
In DC applications, applying a voltage to the gate either opens or closes the channel between the source and drain:
N-Channel Enhancement MOSFET: Requires a positive gate voltage relative to the source to conduct.
P-Channel Enhancement MOSFET: Requires a negative gate voltage relative to the source to conduct.
The MOSFET’s ability to switch rapidly between ON and OFF states makes it ideal for DC circuits where precise power control is essential. This rapid switching reduces energy loss and improves overall system efficiency, particularly in high-current applications.
Threshold Voltage (Vth): Minimum gate voltage required to turn the MOSFET ON.
Rds(on): Resistance of the MOSFET channel when fully conducting; affects conduction losses.
Gate Charge (Qg): Determines how fast the MOSFET can switch; lower charge allows higher-frequency operation.
By controlling these parameters, engineers can design DC circuits with high efficiency, thermal stability, and minimal electromagnetic interference (EMI).
Power supplies and DC-DC converters: Regulate voltage efficiently with minimal heat.
Battery management systems: Protect batteries and manage charging/discharging in EVs.
Motors and actuators: Pulse Width Modulation (PWM) allows precise speed and torque control.
LED drivers: Maintain stable current for high-efficiency lighting applications.
Low conduction loss: High electron mobility reduces resistive losses.
High switching speed: Enables rapid PWM and efficient power conversion.
Compact design: Supports high-density electronic devices.
Minimal input power: Voltage-controlled gates require little energy for control, improving efficiency.
Comparison Table: MOSFET vs Mechanical Switch in DC Systems
Feature | MOSFET | Mechanical Switch |
Switching Speed | Nanoseconds | Milliseconds |
Power Loss | Low | High |
Size | Compact | Bulky |
Lifetime | Millions of cycles | Limited by mechanical wear |
Control | Voltage-controlled | Manual or electromechanical |
While MOSFETs are commonly used in DC applications, they also play a critical role in AC signal control and amplification.
MOSFETs do not inherently generate AC, nor do they conduct alternating current as simple switches. Instead, they modulate or amplify AC signals by varying the current flow in response to time-varying gate voltages.
In AC circuits, MOSFETs operate in linear (triode) mode, allowing the output current to follow the variations of the input signal.
They are widely used in audio amplification, RF circuits, and analog modulation systems, where precise control of signal amplitude and waveform is essential.
AC voltage is applied to the gate via coupling capacitors.
MOSFET conduction varies proportionally to the gate voltage waveform.
The output signal mirrors the AC input, allowing amplification or waveform shaping.
Small-signal models and transconductance (gm) are used to quantify AC behavior. Transconductance defines the ratio of output current change to input voltage change, a critical parameter in AC design.
Audio and RF amplifiers
Signal modulation circuits
Analog filters and oscillators
Low-noise communication devices
Feature | DC Application | AC Application |
Operating Mode | Switching (ON/OFF) | Linear amplification / modulation |
Control | Gate voltage toggles conduction | Gate voltage modulates output waveform |
Power Level | High (power electronics) | Low (signal processing) |
Waveform | Constant or pulsed DC | Sinusoidal or alternating |
Example | Motor controllers, converters | Audio amplifiers, RF transmitters |

Although a MOSFET does not directly convert AC to DC or vice versa, it is crucial in conversion circuits.
MOSFETs act as synchronous rectifiers, replacing diodes for higher efficiency.
Switching losses are minimized due to low Rds(on) and fast transitions.
Improves system efficiency, especially in high-power AC-DC converters.
MOSFETs rapidly switch DC to produce AC waveforms.
Used in solar inverters, UPS systems, and motor drives.
High switching speed reduces harmonic distortion and improves waveform fidelity.
Block Diagram: DC input → MOSFET switching → PWM → AC output
Parameter | Effect in DC | Effect in AC |
Threshold Voltage (Vth) | Determines ON/OFF switching | Defines linear operating range |
Rds(on) | Affects conduction loss | Less critical in small-signal operation |
Gate Capacitance | Limits switching speed | Affects high-frequency response |
Transconductance (gm) | Minimal impact | Determines amplification gain |
Thermal Resistance | Influences power handling | Affects linearity and stability under load |
Careful parameter selection ensures MOSFETs are efficient and reliable in both AC and DC applications.
MOSFET acts as a switch, controlling current flow to loads efficiently.
Can handle high current and voltage levels with minimal losses.
Operates in linear mode, modulating current in proportion to the input AC voltage.
Used for signal amplification and modulation, critical in communication and audio systems.
Many systems, like inverters, combine AC and DC functionalities.
MOSFETs manage DC supply while shaping AC output waveforms efficiently.
Support higher voltages, frequencies, and temperatures.
Ideal for hybrid AC/DC systems, such as electric vehicle inverters and renewable energy solutions.
Improve efficiency, reduce system size, and enable faster switching.
Combine MOSFETs with control ICs for simplified system design.
Reduce component count, enhance energy efficiency, and support precise power management.
A MOSFET itself is neither strictly AC nor DC. Its behavior depends on circuit configuration:
In DC circuits, it functions as a fast, efficient switch.
In AC circuits, it serves as a linear amplifier or modulator, shaping or amplifying the signal.
The versatility of MOSFETs makes them indispensable in modern electronics, from power management to signal processing and high-efficiency energy systems. For reliable MOSFET solutions and expert technical support, Jiangsu Donghai Semiconductor Co., Ltd. offers advanced semiconductor devices suitable for a wide range of AC and DC applications.
Q1: Is MOSFET used for AC or DC circuits?
A: MOSFETs can operate in both. In DC circuits, they act as switches; in AC circuits, they modulate or amplify signals.
Q2: Can a MOSFET convert AC to DC?
A: Not directly, but MOSFETs are essential in AC-DC conversion circuits like synchronous rectifiers.
Q3: Why is N-channel MOSFET preferred for DC circuits?
A: Electron mobility is higher than hole mobility, reducing resistance and improving efficiency.
Q4: Can MOSFETs handle high-frequency AC signals?
A: Yes, especially SiC and GaN MOSFETs designed for high-speed operation.
Q5: What happens if AC is applied to a MOSFET gate?
A: If biased correctly, it can modulate output; improper biasing may cause malfunction or damage.
Q6: Which MOSFET type is ideal for linear AC applications?
A: Depletion-mode or linear-mode MOSFETs provide smooth amplification with minimal distortion.
