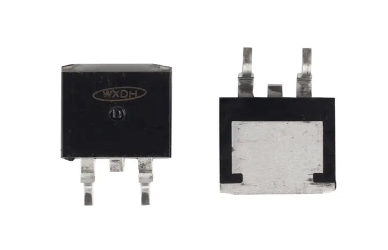

Diodes are fundamental components in modern electronics, widely used to control the flow of electrical current in circuits. Their primary function is to allow current to pass in one direction while blocking it in the opposite direction, making them essential for tasks like rectification, voltage regulation, and circuit protection. This article aims to provide a clear understanding of what a diode is, how it operates, and why it plays a crucial role in both simple and complex electronic systems.
Definition of a Diode
1.Basic Definition
A diode is a semiconductor device that primarily allows electrical current to flow in a single direction, from the anode to the cathode, while blocking current in the reverse direction. This unidirectional property makes diodes essential in controlling and directing current in electronic circuits.
2.Symbol and Schematic Representation
In circuit diagrams, a diode is represented by a triangle pointing toward a line. The triangle indicates the direction of conventional current flow (anode to cathode), while the line represents the cathode, showing where current cannot pass in reverse. Understanding this symbol is crucial for reading and designing electronic schematics.
3.Basic Structure: Anode, Cathode, and PN Junction
The internal structure of a diode consists of a PN junction formed by joining P-type and N-type semiconductor materials. The P-type side is the anode, and the N-type side is the cathode. When a forward voltage is applied (anode positive relative to cathode), the diode conducts. When reverse voltage is applied, it blocks current, except in the case of breakdown conditions. This PN junction is the fundamental element that gives the diode its directional conductivity.
How a Diode Works
1.Forward Bias: Allowing Current Flow
When the anode of a diode is connected to a positive voltage relative to the cathode, the diode is in forward bias. This reduces the potential barrier at the PN junction, allowing electrons from the N-type region and holes from the P-type region to recombine and produce current. Current begins to flow once the applied voltage exceeds the diode's threshold, known as the cut-in or forward voltage (typically around 0.7V for silicon diodes).
2.Reverse Bias: Blocking Current Flow
In reverse bias, the anode is connected to a negative voltage relative to the cathode. This increases the potential barrier at the PN junction, preventing electron-hole recombination and effectively blocking current flow. Only a tiny leakage current flows under normal conditions. Excessive reverse voltage can lead to breakdown, causing significant current that may damage the diode if not controlled.
3.PN Junction Behavior and Voltage Threshold
The PN junction acts as a gate for current, controlling conduction based on applied voltage. The forward voltage threshold determines when the diode starts conducting efficiently, while the reverse breakdown voltage defines the maximum reverse voltage the diode can withstand safely.
4.Role of Electrons and Holes in Conduction
Conduction in a diode is the movement of charge carriers. Electrons in the N-type region move toward the P-type region under forward bias, while holes move in the opposite direction. Their recombination releases energy and allows continuous current flow in the forward direction, whereas in reverse bias, these carriers are prevented from crossing the junction, maintaining the diode’s unidirectional behavior.
Types of Diodes
1.Standard (Rectifier) Diodes
Used primarily to convert alternating current (AC) to direct current (DC). They have a high current-carrying capacity and moderate switching speed, making them ideal for power supply circuits.
2.Zener Diodes
Designed to allow current to flow in the reverse direction when a specific breakdown voltage is reached. They are commonly used for voltage regulation, providing stable reference voltages in electronic circuits.
3.Schottky Diodes
Characterized by low forward voltage drop and very fast switching speed. They are widely used in high-frequency applications, power rectification, and as protection diodes in digital circuits.
4.Light-Emitting Diodes (LEDs)
Emit light when forward-biased. Used in displays, indicators, and general illumination. LEDs are highly efficient and available in various colors and sizes.
5.Other Specialized Diodes
TVS (Transient Voltage Suppression) Diodes: Protect sensitive circuits from voltage spikes.
Varactor Diodes: Act as variable capacitors in tuning circuits.
Photodiodes: Convert light into electrical current for sensors and optoelectronic applications.
Each type of diode is optimized for specific functions, making them versatile components across power, signal, and optoelectronic circuits.
Applications of Diodes
1.Rectification in Power Supplies
Diodes are widely used to convert alternating current (AC) to direct current (DC) in power supply circuits, a process known as rectification. Rectifier diodes ensure a unidirectional flow of current, providing stable DC output necessary for the proper operation of electronic devices, from household appliances to industrial machinery. By preventing reverse current, diodes protect sensitive components and enhance the overall efficiency of power conversion systems.
2.Voltage Regulation and Protection Circuits
Zener diodes are crucial in maintaining a constant voltage across sensitive electronic components, preventing overvoltage that could damage circuits. Additionally, transient voltage suppression (TVS) diodes safeguard electronic devices from sudden voltage spikes, surges, and electrostatic discharge events. These protective roles ensure device longevity, reduce maintenance costs, and improve operational stability in environments prone to electrical fluctuations.
3.Signal Modulation and Switching
Diodes such as Schottky and PIN diodes are extensively employed in high-speed switching, signal modulation, and demodulation applications. They allow rapid control of current and voltage in communication systems, radio-frequency circuits, and digital electronics. Their ability to switch on and off quickly makes them indispensable for applications requiring precise timing, fast signal processing, and efficient data transmission.
4.Light Emission and Sensing Applications
Light-emitting diodes (LEDs) serve as energy-efficient sources of illumination and visual indicators, while photodiodes are used in light detection, optical communication, and sensing applications. These devices demonstrate how diodes bridge the gap between electronic and optoelectronic systems, enabling innovations in lighting, safety signaling, medical devices, and automated detection technologies.
Overall, diodes are fundamental components that control current flow, regulate voltage, process electrical signals, and facilitate light-based applications. Their versatility, reliability, and efficiency make them essential across industries ranging from consumer electronics and telecommunications to automotive, industrial automation, and renewable energy systems.
Practical Considerations for Diodes
1.Forward Voltage Drop and Efficiency
Every diode has a characteristic forward voltage drop, typically ranging from 0.3 V for Schottky diodes to 0.7 V for standard silicon diodes. This voltage drop affects circuit efficiency, particularly in power applications, as energy is dissipated as heat. Choosing diodes with lower forward voltage can improve overall system efficiency.
2.Maximum Current and Power Ratings
Diodes are specified with maximum forward current (IF) and power dissipation limits. Exceeding these ratings can cause overheating, degradation, or permanent failure. Proper selection ensures reliable operation under expected load conditions.
3.Temperature Effects and Reliability
Diode performance is influenced by temperature. Higher temperatures increase leakage current, reduce maximum current capability, and can accelerate material degradation. Designers must consider thermal management, including heat sinks or cooling, to maintain diode reliability in demanding environments.
Considering forward voltage, current/power ratings, and temperature effects helps ensure safe, efficient, and long-lasting diode operation in practical applications.
Conclusion
Diodes are fundamental semiconductor devices that allow current to flow in one direction while blocking it in the opposite, making them essential for rectification, voltage regulation, switching, signal processing, and many other electronic applications. Understanding their working principle—including forward and reverse bias behavior, PN junction operation, and characteristic voltage drops—is crucial for designing reliable and efficient circuits. Careful selection of the appropriate diode type, along with consideration of practical factors such as maximum current rating, power dissipation, temperature effects, and long-term reliability, ensures optimal performance and safety. A solid grasp of diode operation and application is therefore vital for engineers, technicians, and electronics enthusiasts aiming to develop effective and durable electronic systems.
